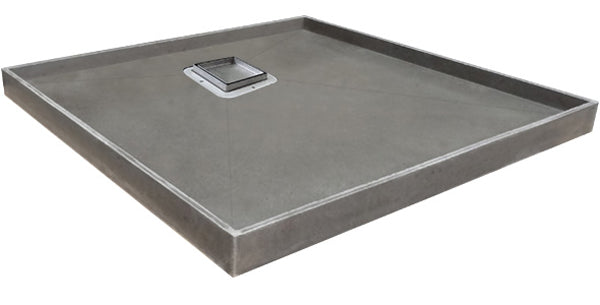

Shower Tray With Rear Outlet


Pre Fabricated Shower Tray with rear waste - incl. Tile in Waste (Smart Tile) 110mm S/S with flange - DWV (to suit 50mm plumbing)

  • Stocked Item In Smart Tile Waste
  • AS 3740-2010 and AS 3588-1996 compliant
  • Manufactured with a recommended fall ratio (between 1:60/1:80)
  • Shower Base dimensions may vary by +/- 5mm
  • To suit Tile and Vinyl applications
  • Integrated waste outlet (Oval Slotted, Plain, Tile Insert, Linear)
  • Can be supplied with Twist Top Puddle Flange or Vinyl Waste upon request


Available in Sizes - Click each size to see spec sheet

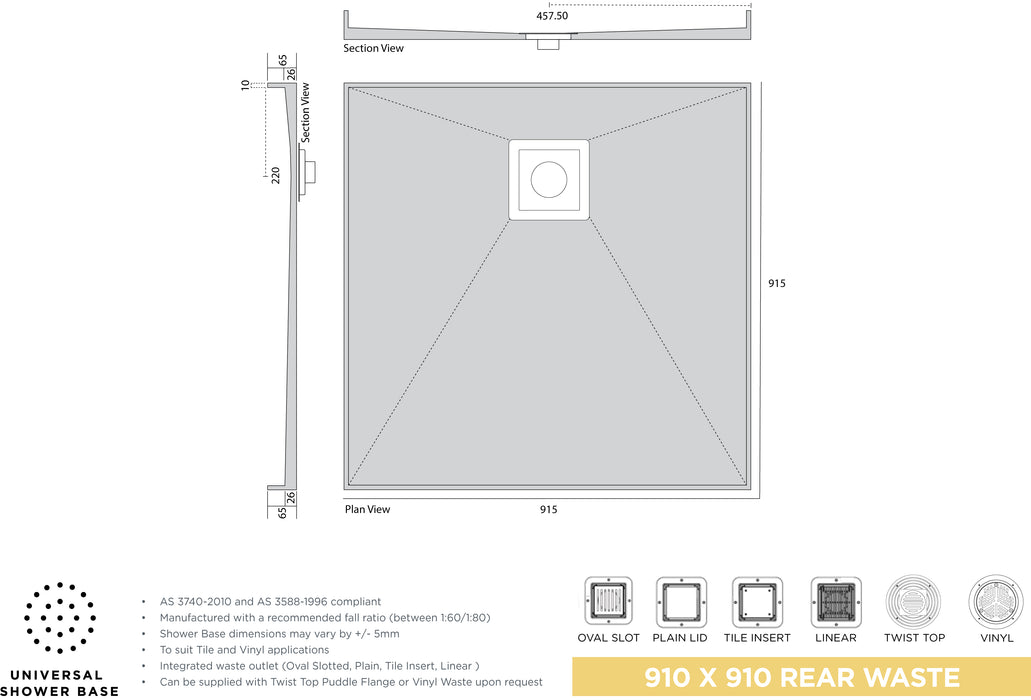

910 x 910mm

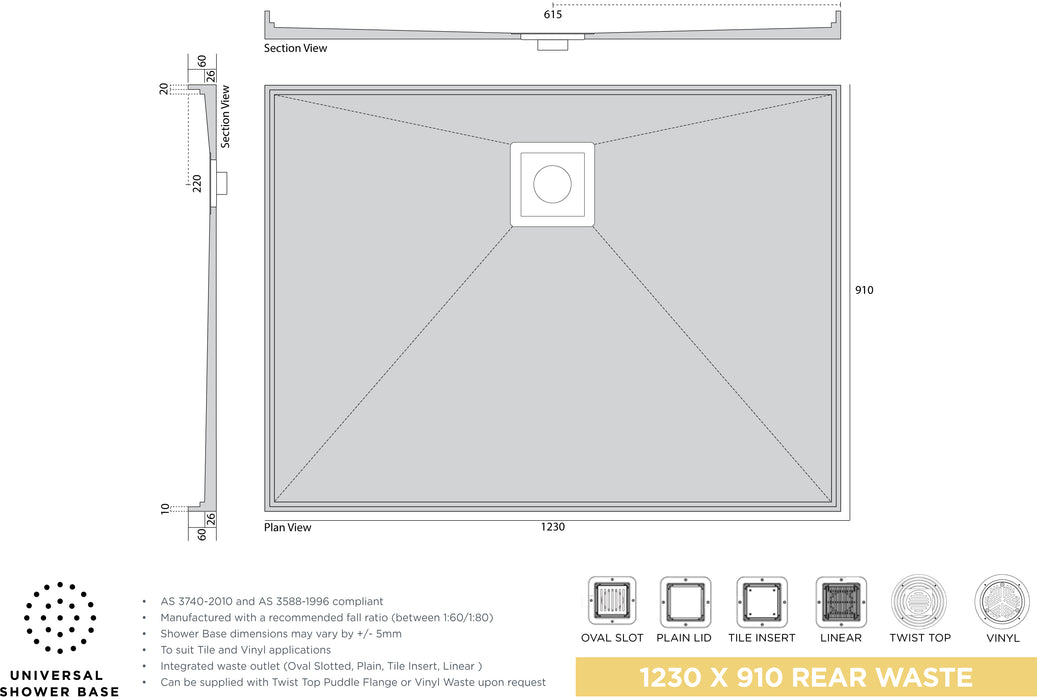

1230 x 910mm

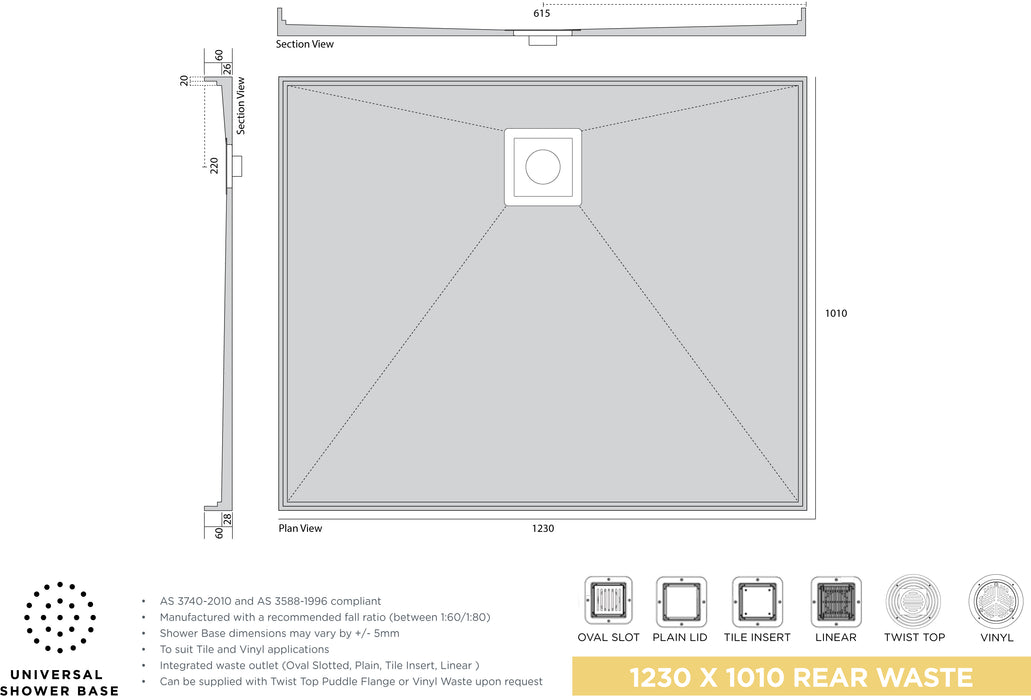

1230 x 1010mm

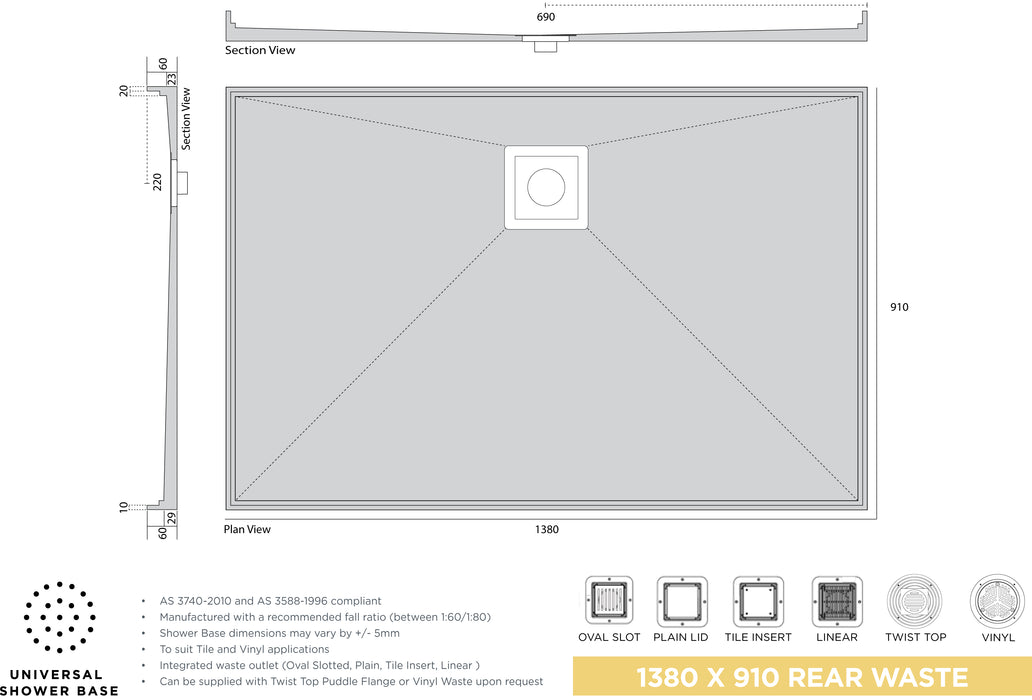

1380 x 910mm

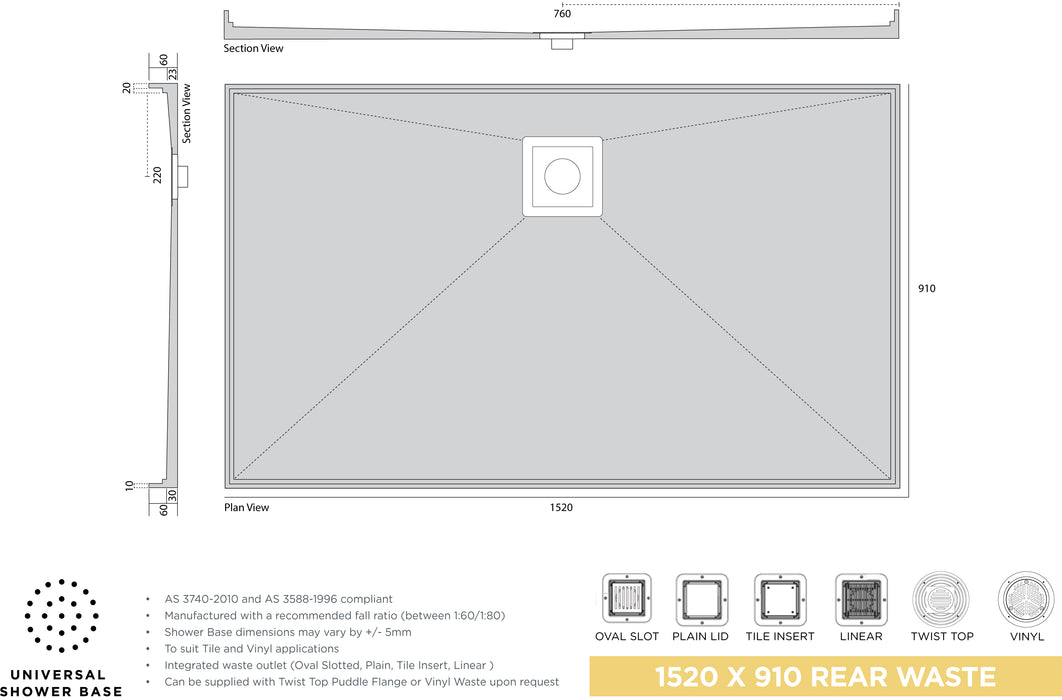

1520 x 910mm

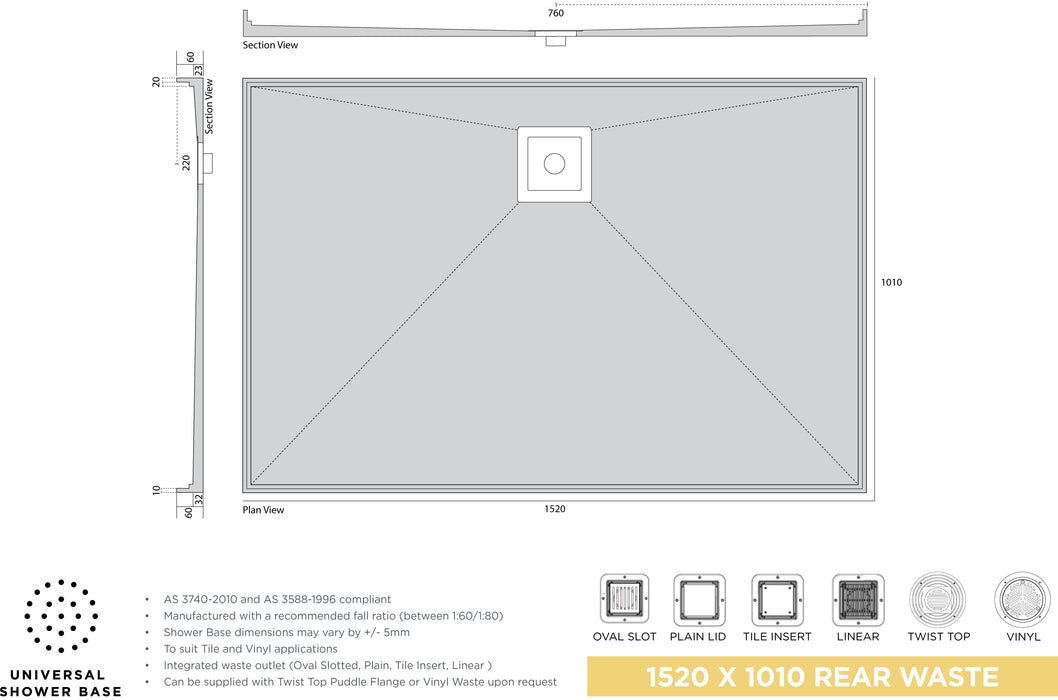

1520 x 1010mm

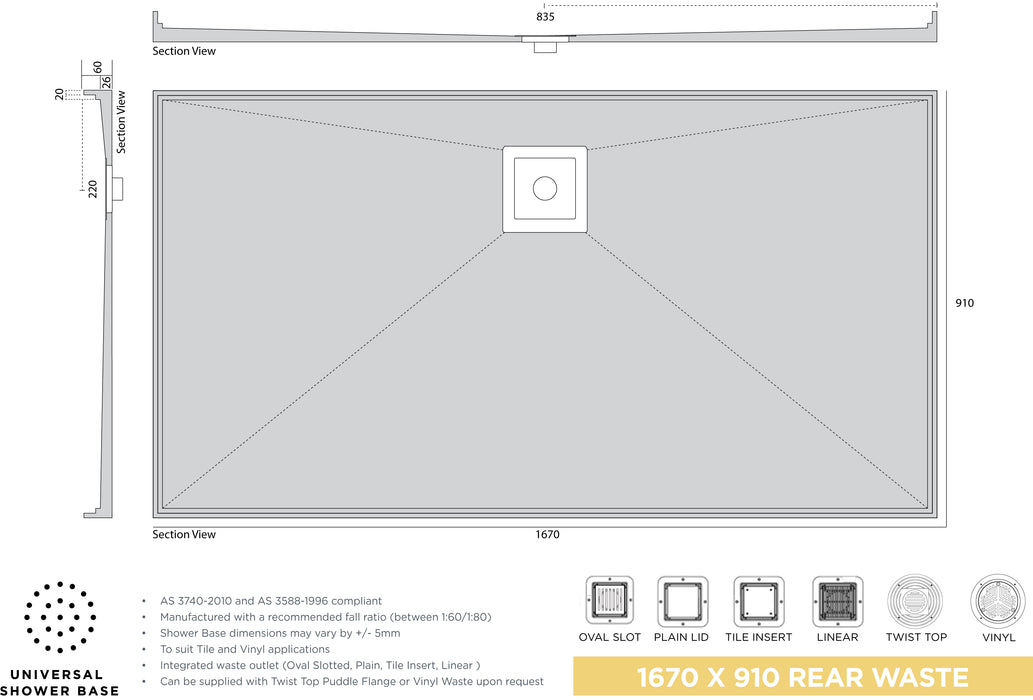

1670 x 910mm

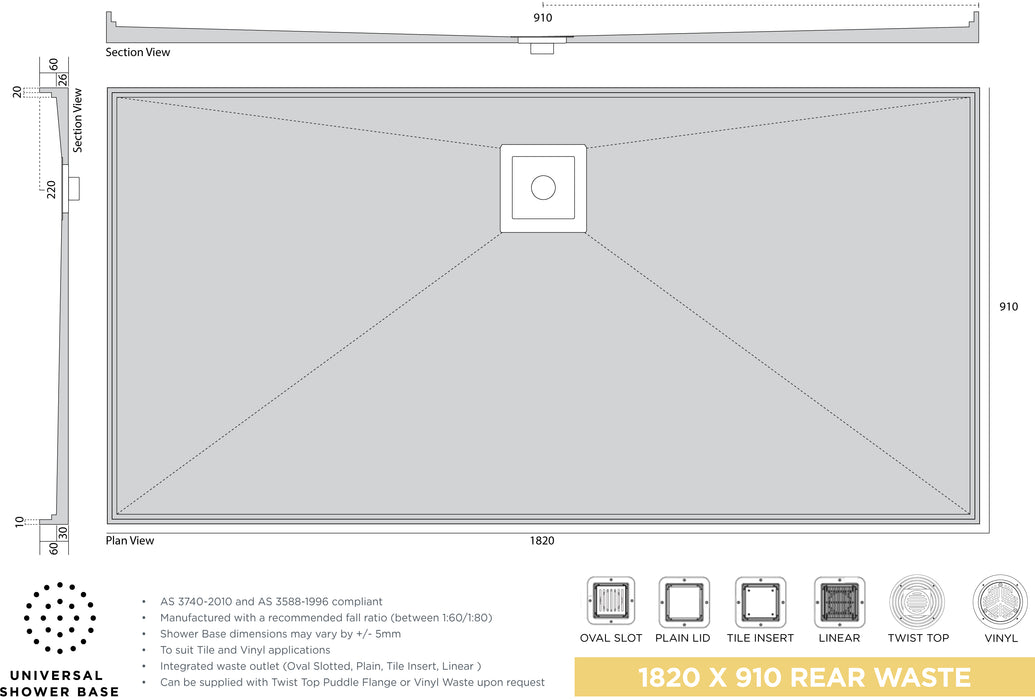

1820 x 910mm

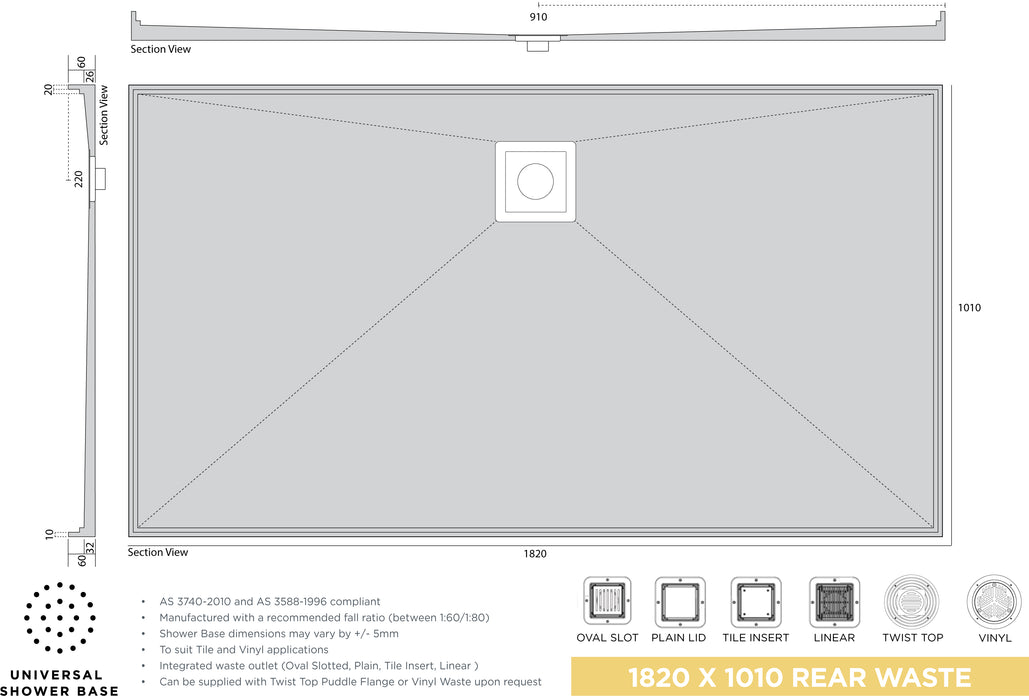

1820 x 1010mm

Can be installed on stumps or slab, level entry or step in.
7 years warranty when installed according to provided instructions.
Bases can Easily be cut to custom sizing or custom made to order from high density foam.

Note: The fist dimension is the intended entry point and therefor the angled fall begins from this side draining to the rear.
Eg. 1230 x 910mm Rear Outlet base has an intended entry from the 1230mm and so the rear waste is positioned centre rear of the back 1230mm side.
