Universal Trays are made entirely from recycled plastic bottles – Polyethylene Terephthalate (PET). They’re tougher, more durable and flexible than previous versions. They’re adaptable to meet specific builder requirements and can be made custom.
- AS 3740-2010 and AS 3588-1996 compliant
- Manufactured with a recommended fall ratio of (1:80)
- Shower Base dimensions may vary by +/- 5mm
- Integrated waste outlet (Tile lid, Slotted lid, Plain lid or Linear lid)
Waste Options Include
01
Slotted (OG)
02
Tile in (TG) (tile not included)
03
Plain (PG)
04
Linear (LG)

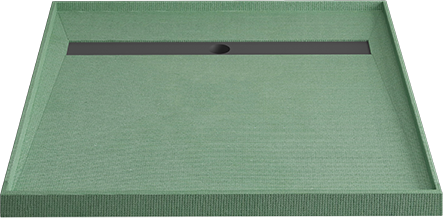

Lipped Channel grate Universal Tray
920x920
920x1020
920x1220
920x1520
920x1820
1020x920
1020x1020

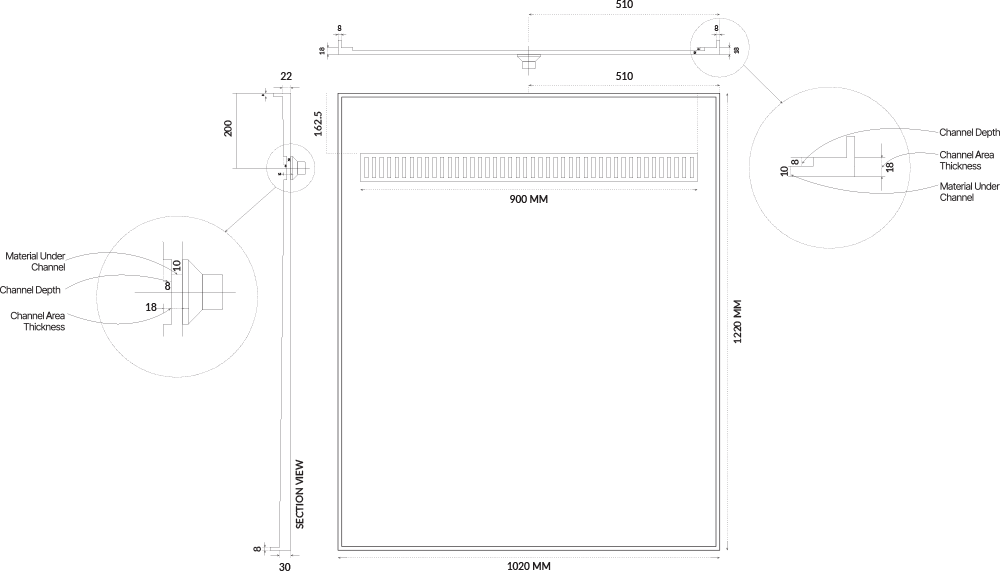

1020x1220
1020x1820

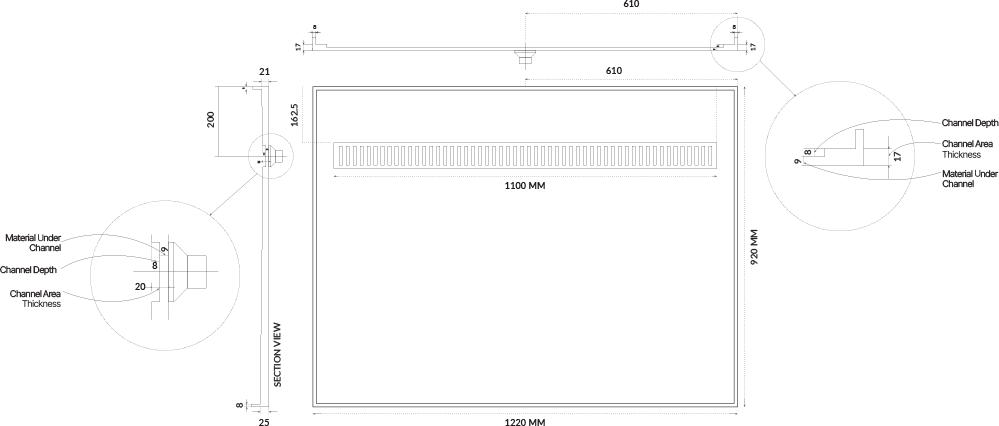

1220x920

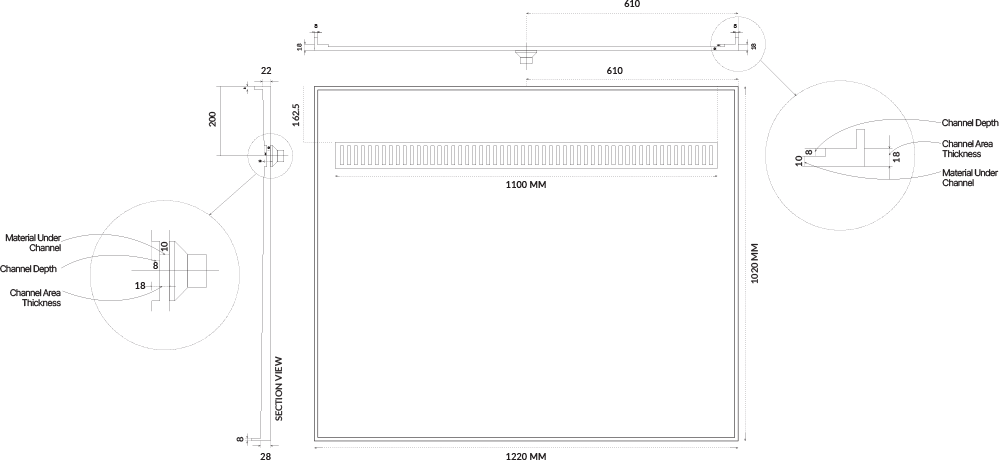

1220x1020

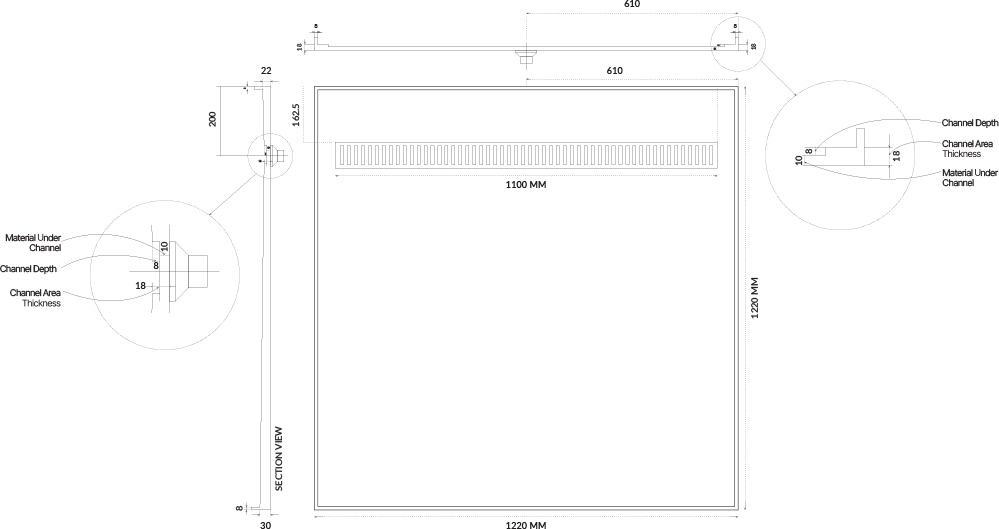

1220x1220

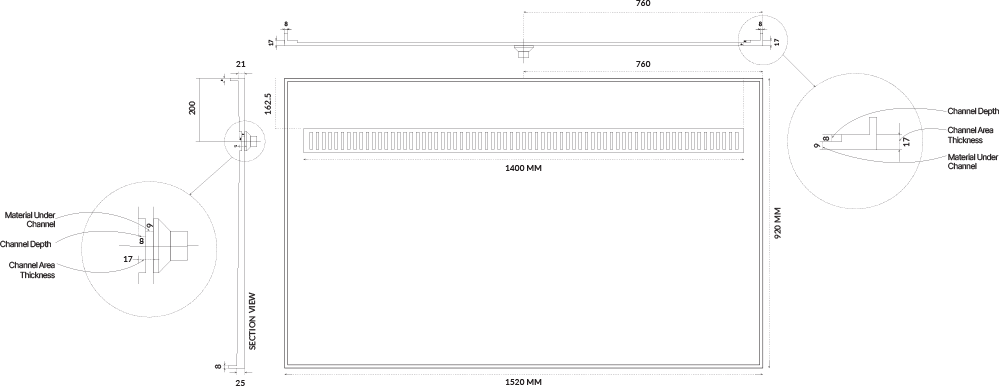

1520x920

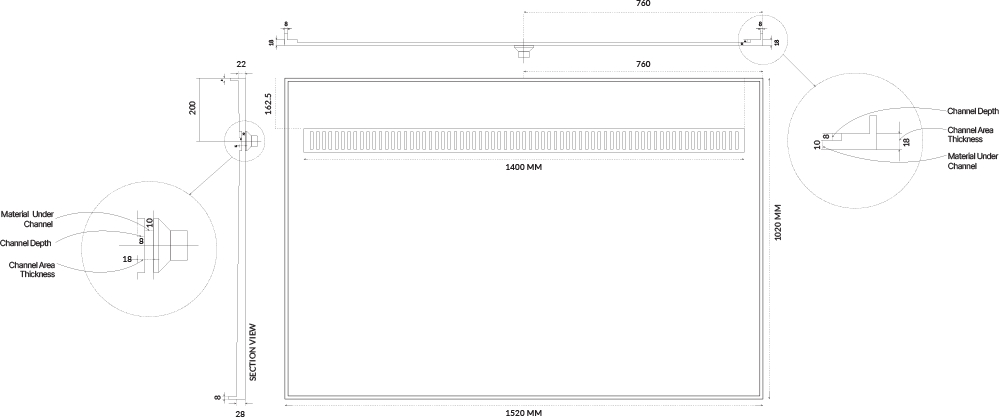

1520x1020

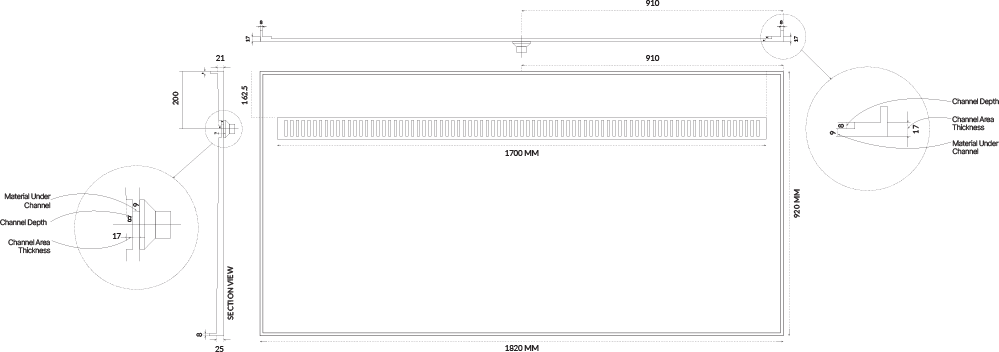

1820x920

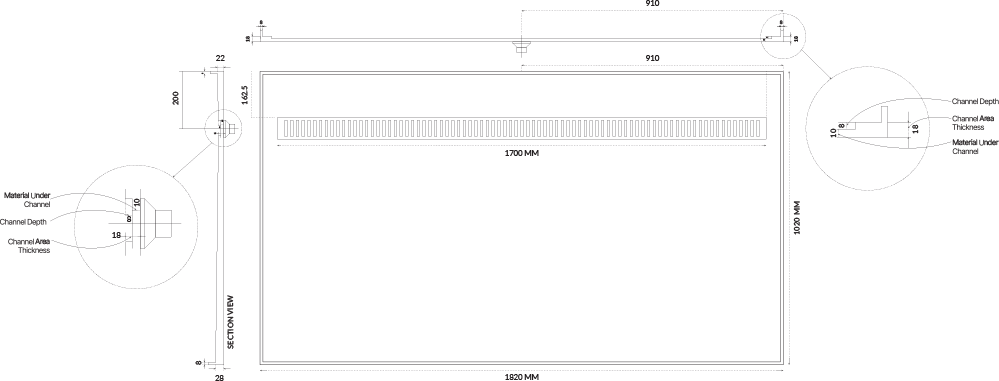

1820x1020
