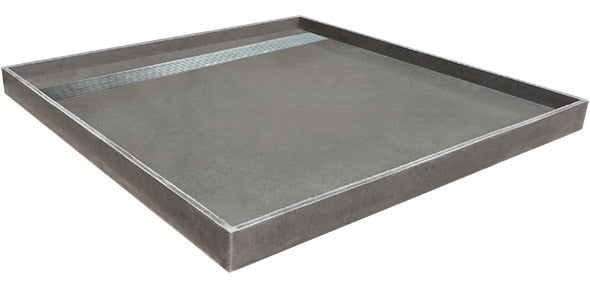

Shower Tray With Channel Grate

Shower Tray With Channel Grate Stainless Oval Slotted Lid Inc. Stainless Steel Channel and Oval Slotted Lid - Tile Insert And Plain Lid Grate Also Available Upon Request

PRODUCT SPECS

• Stocked Item
• AS 3740-2010 and AS 3588-1996 compliant
• Manufactured with a recommended fall ratio (between 1:60/1:80)
• Shower Base dimensions may vary by +/- 5mm
• Integrated waste outlet

 Available Sizes - Click each size for a spec sheet

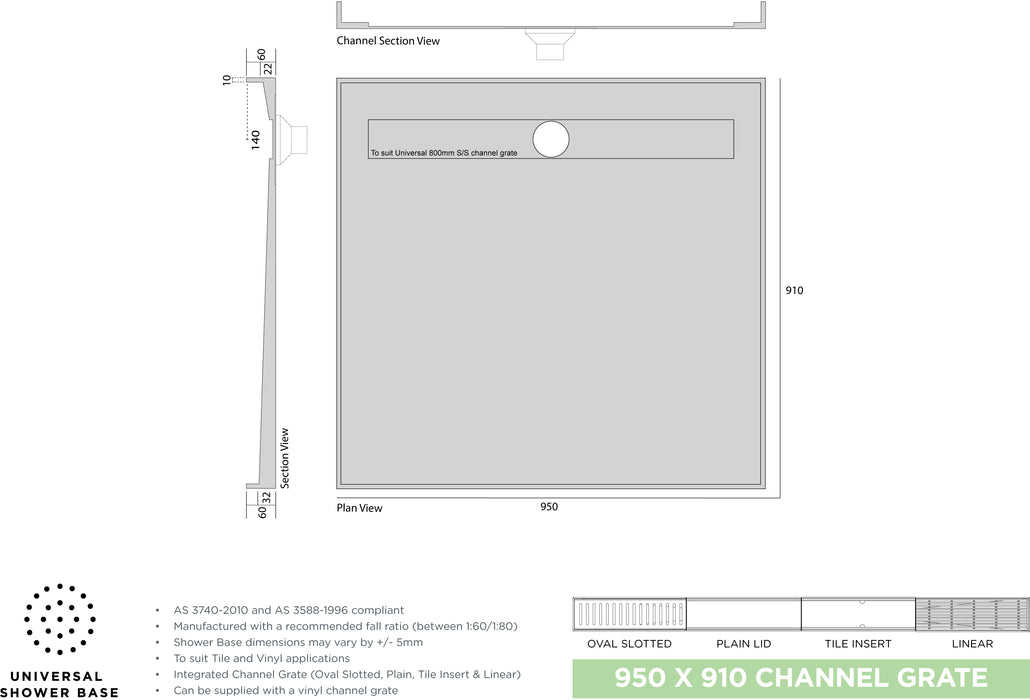

950 x 910mm

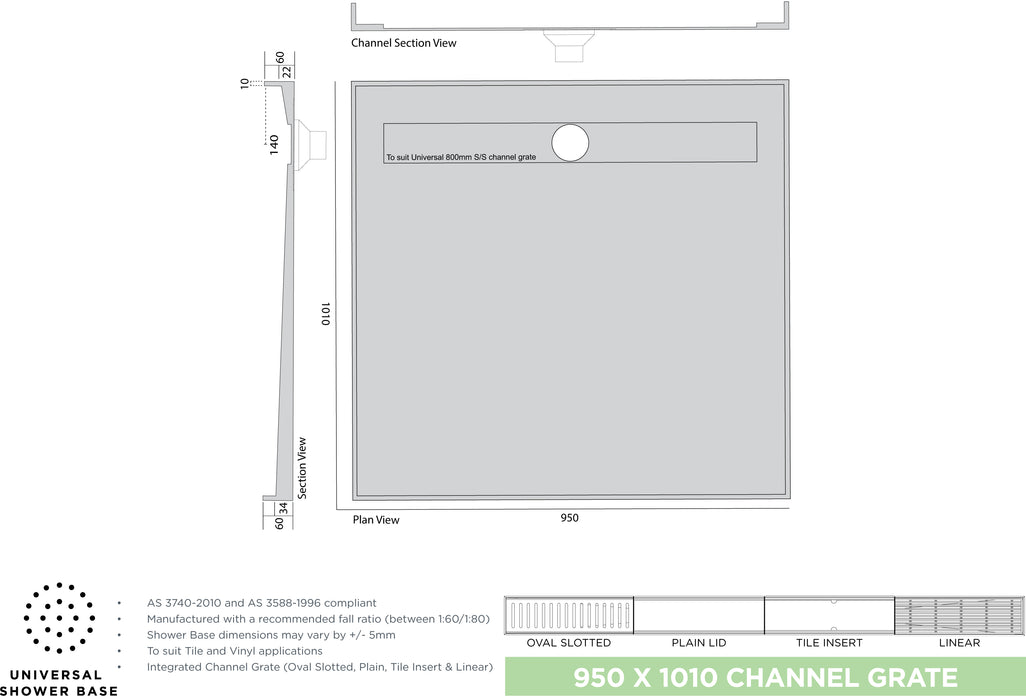

950 x 1010mm

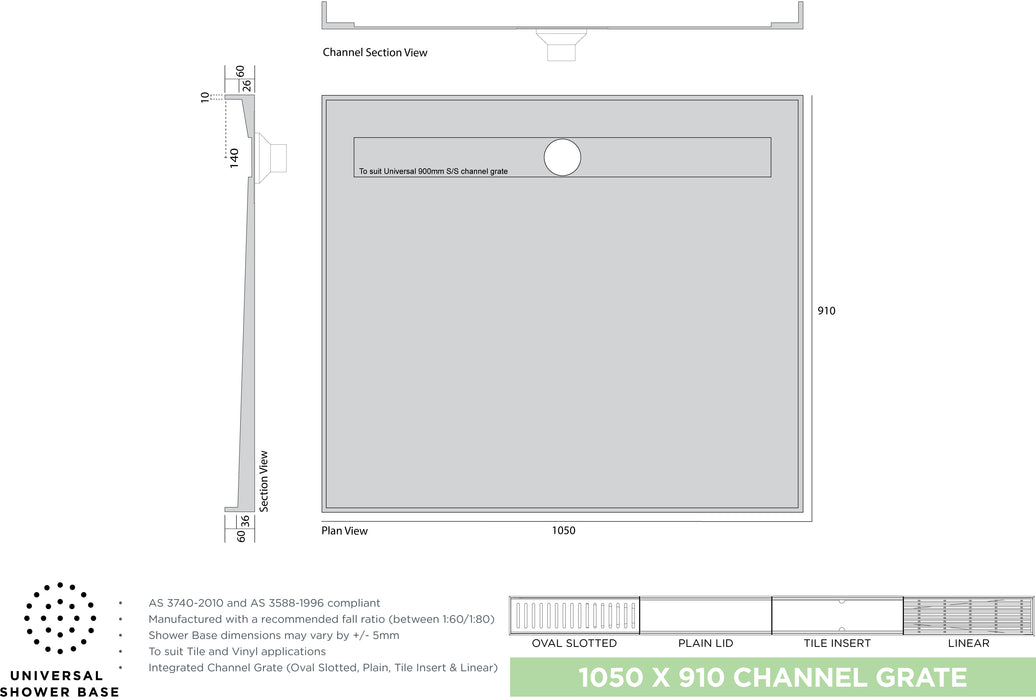

1050 x 910mm

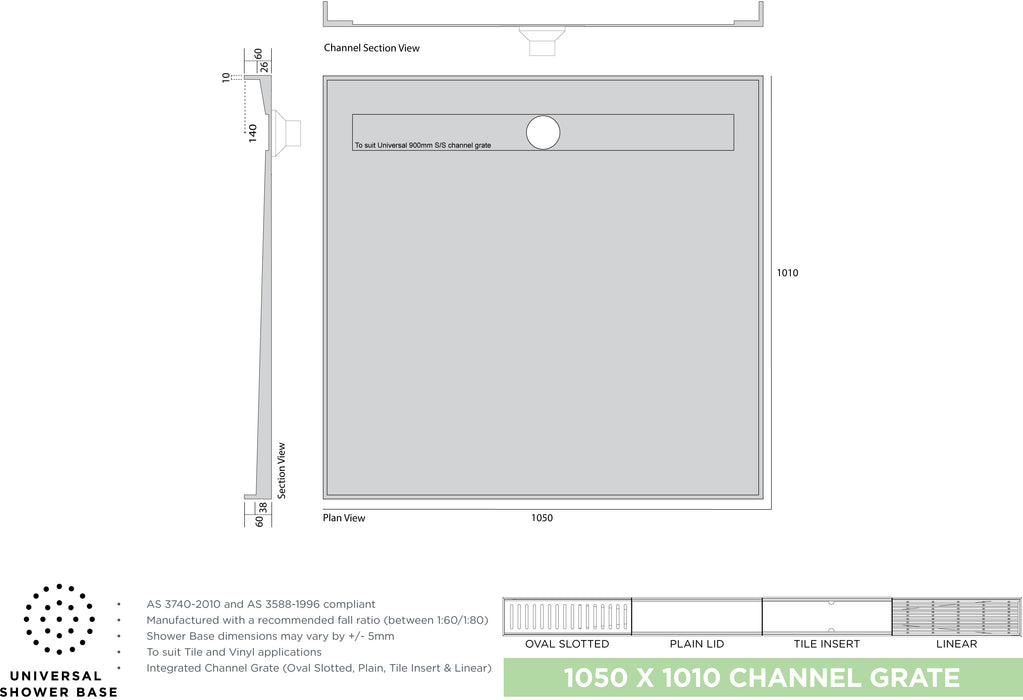

1050 x 1010mm

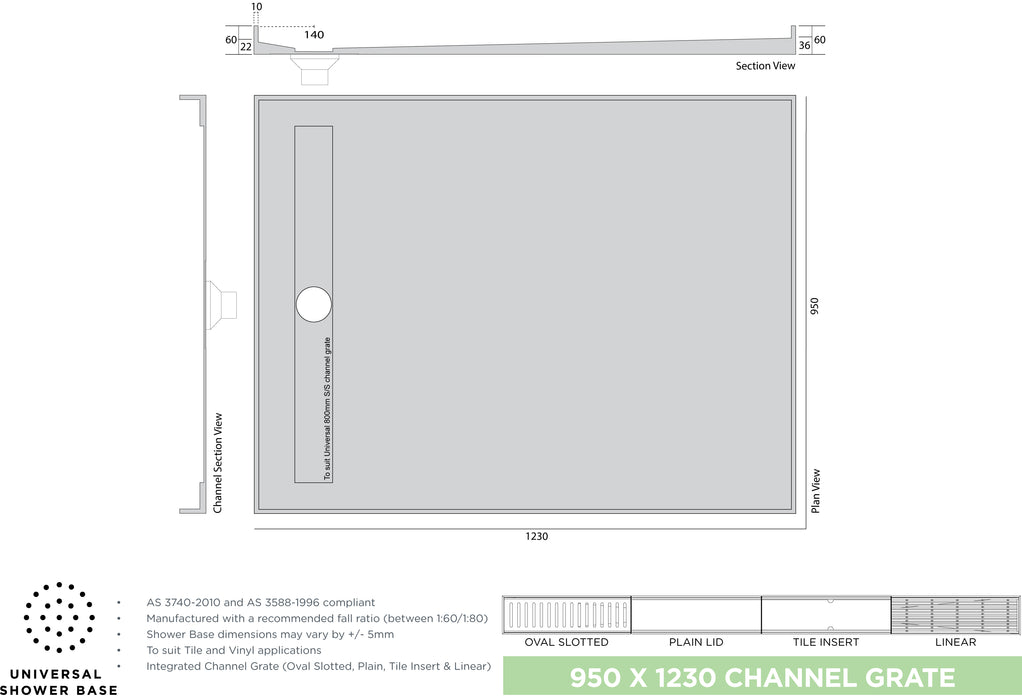

950 x 1230mm

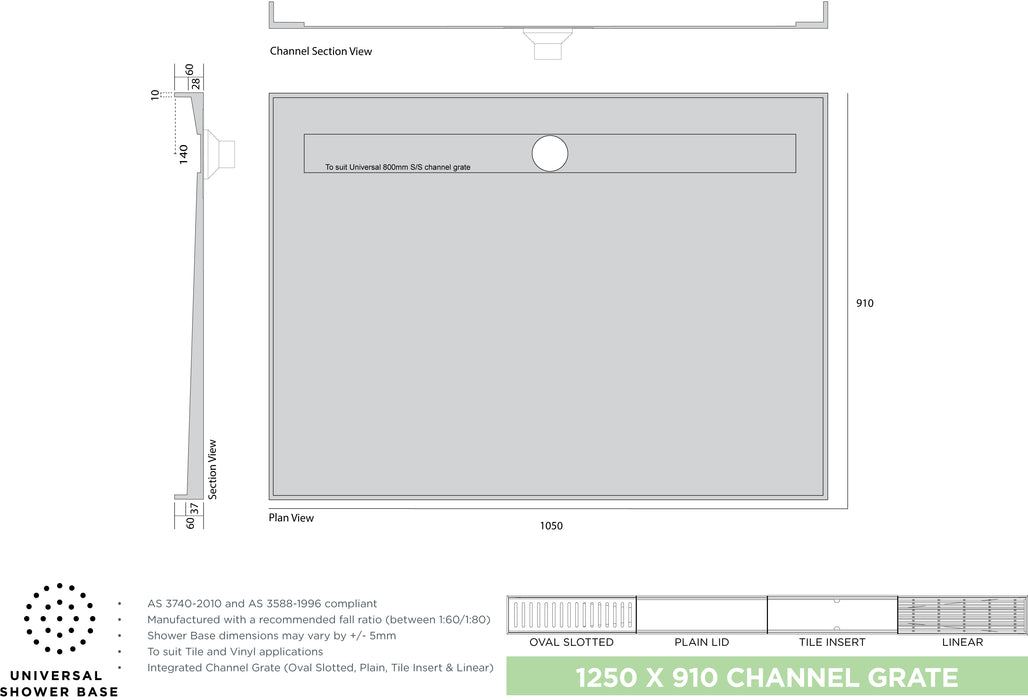

1250 x 910mm

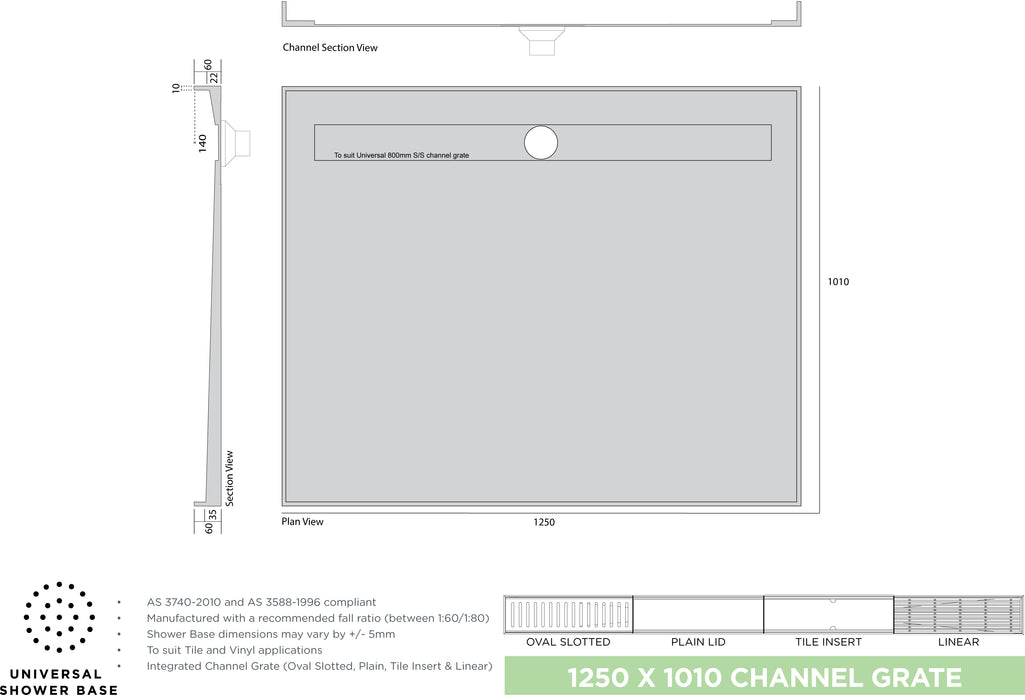

1250 x 1010mm

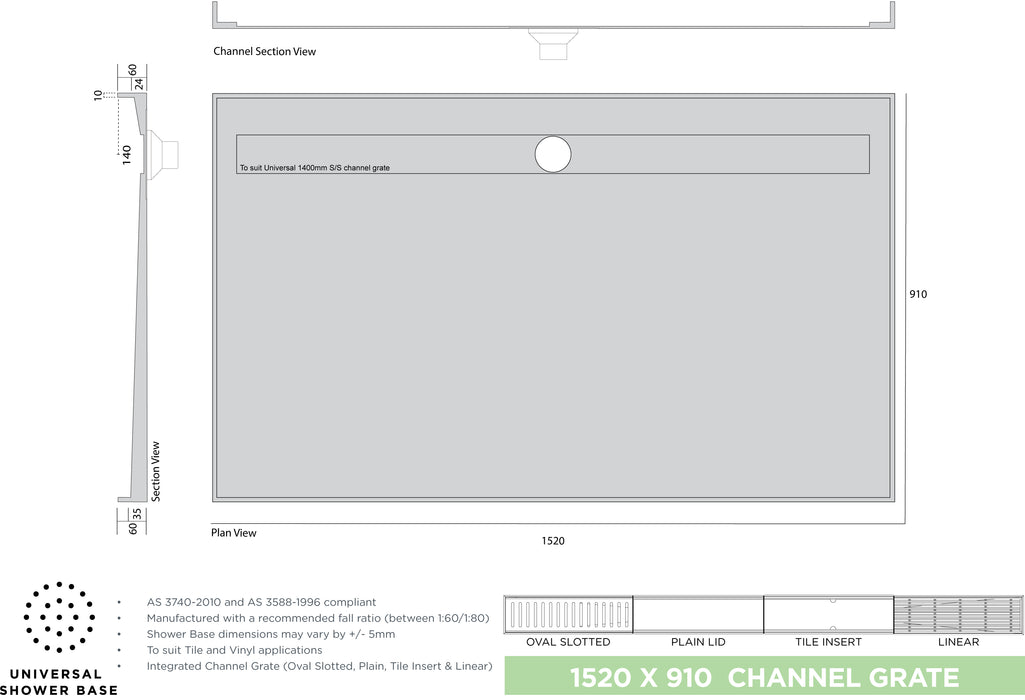

1520 x 910mm

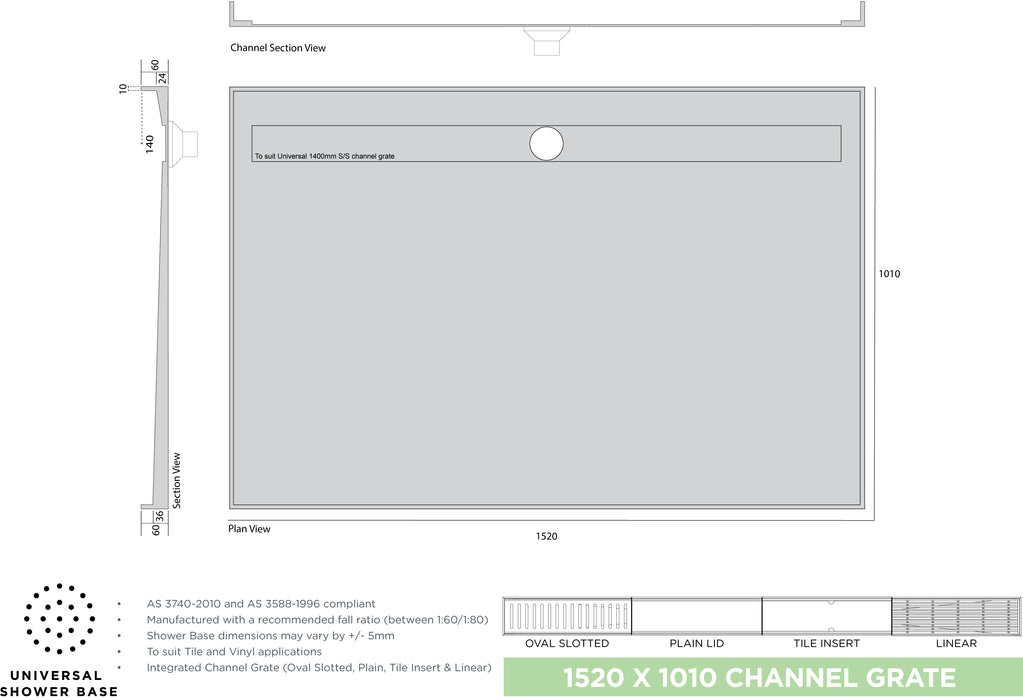

1520 x 1010mm

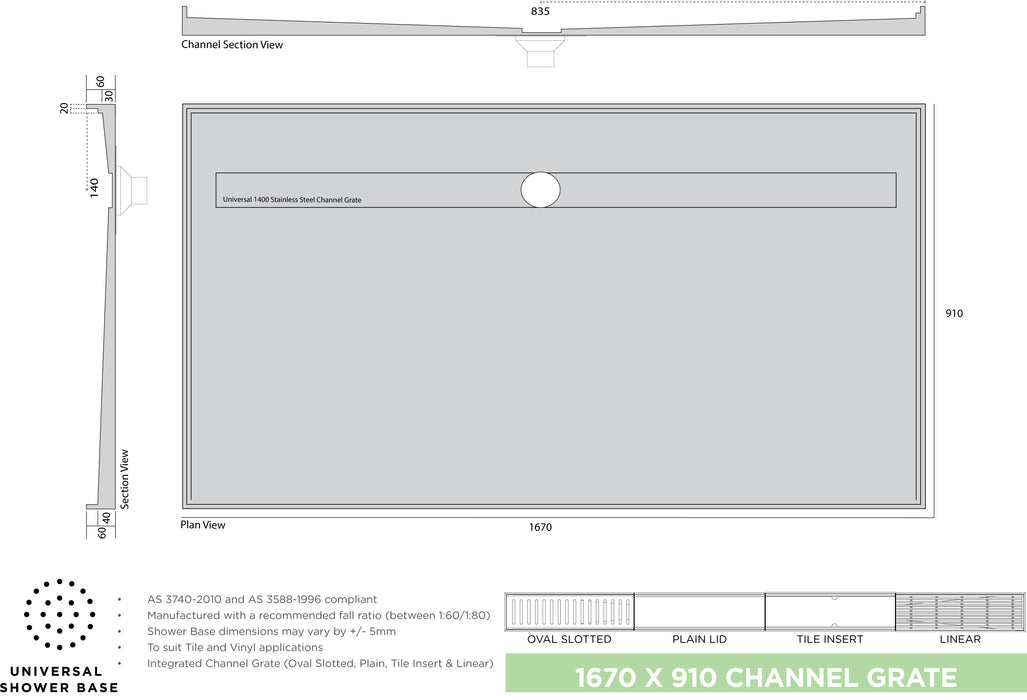

1670 x 910mm

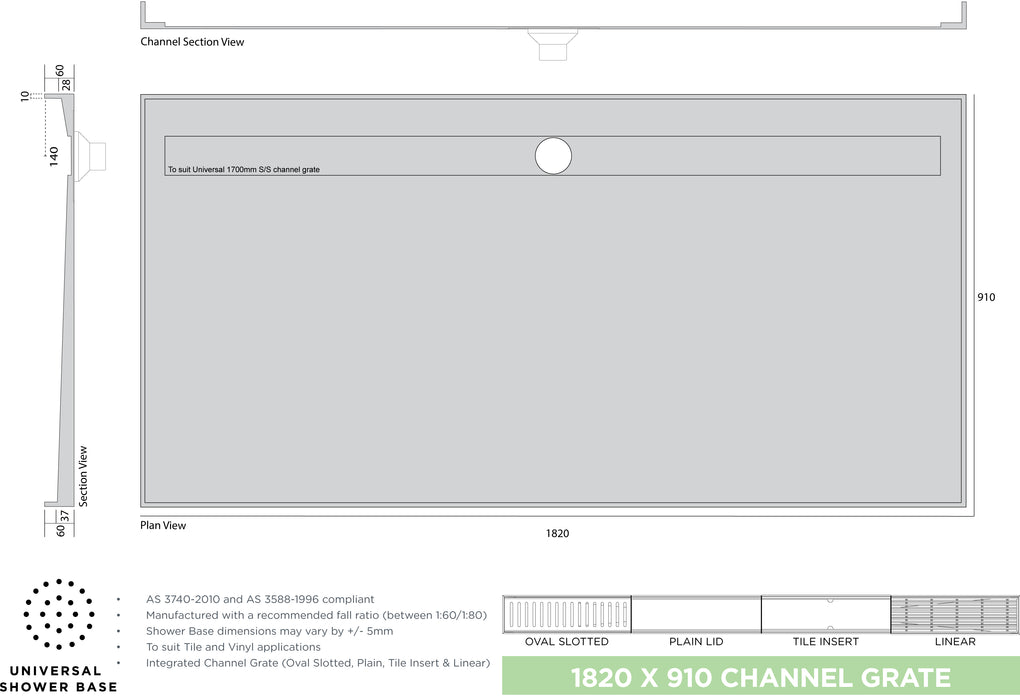

1820 x 910mm

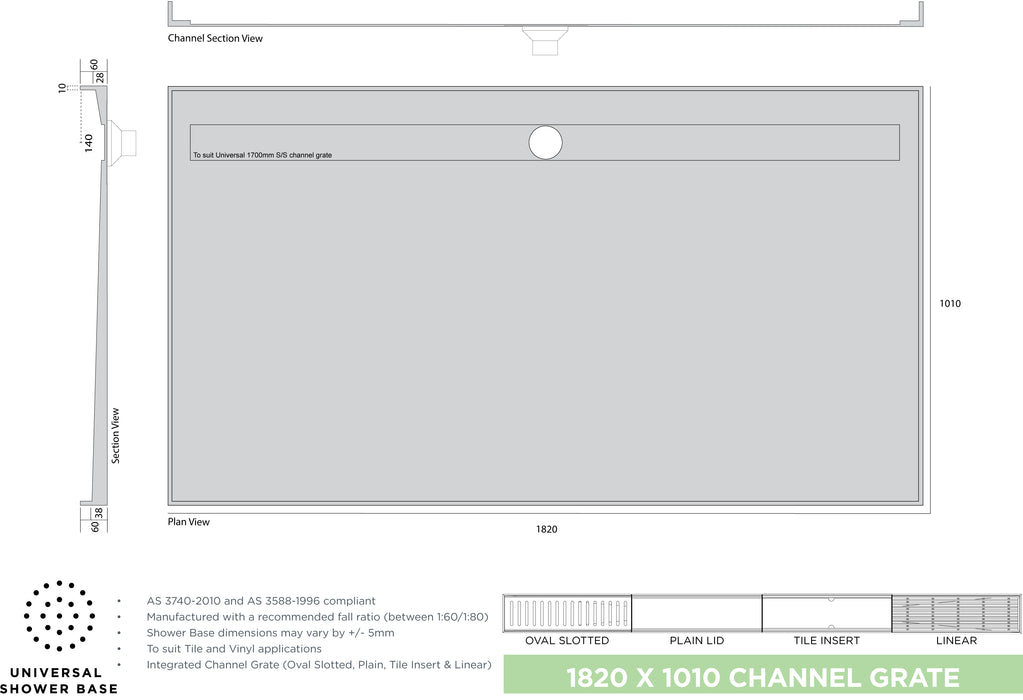

1820 x 1010mm

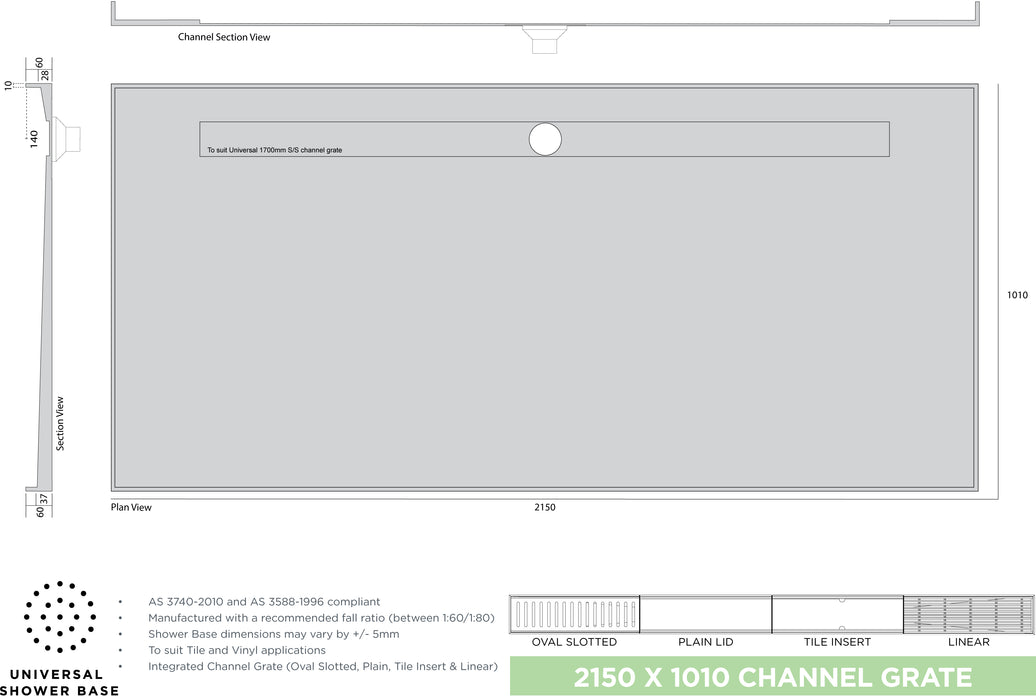

2150 x 1010mm

Note: The first dimension is the intended entry point and therefor the angled fall begins from this side draining to the rear.
Eg. 1230 x 910mm Rear Outlet base has an intended entry from the 1230mm and so the rear waste is positioned centre rear of the back 1230mm side.
